Description
| Engine: | FPT | Type: | Canopy Diesel Generator |
|---|---|---|---|
| Color: | Customized | Fuel Tank: | Built In Generator |
| Generator Type: | Silence Generator Set | Alternator Power: | 100% Output |
| Warranty: | 12 Months | Packing: | Plywood Case |
| Usage: | Emergency Crew | Power: | 80kw 100kva |
| High Light: |
80KW Canopy Diesel Generator, 100KVA Canopy Diesel Generator, FPT industrial diesel generator |
||

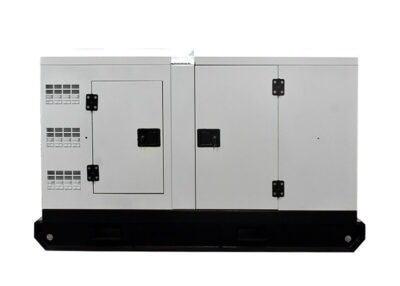

Famous Diesel Engine Genset Canopy Diesel Generator Fpt Iveco 80kw 100kva Industrial Diesel Generator
Product information :
Rated power: 5kVA-2500kVA
Frequency: 50/60Hz
Speed: 1500/1800rpm
Voltage: 110/220V, 230/400V, 220/380V
Fuel tank: 8, 12, 24, 48 hours operation fuel tank
Water tank: 40-50ºC environmental protection
Diesel engine: 4 stroke, water cooled
Alternator: Stamford brush less alternator
Noise level: Below 72dB @7meters
Type: Super-silent, silent, open, mobile, container type
Optional: ATS, water heater, fuel heater…
Controller: Deepsea,Smartgen, Datakon
Delivery time: within 20 days
Export port: Fuzhou, China
Warranty: Running 1000 hours or 12 months
DESIGN: Canopy and open type for options
Certificate: CE SASO
Condition: Brand New
| Output Ratings |
| Generating Set Model | Prime | Standby | ||||
| APIV-80 | 100kVA80kW | 110kVA/88kW | ||||
| Ratings and Performance Data |
| Engine Brand | FPT IVECO | |||
| Engine Model | NEF45TM2A.S500 | |||
| Alternator Brand | Stamford | |||
| Alternator Model | UC274C / UCI274C | |||
| Control System | Smartgen HGM6120N | |||
| Circuit Breaker Type | / | |||
| Frequency / Phase | 50Hz/ Three phase | |||
| Engine Speed ( RPM) | 1500Rpm | |||
| GENERAL | ||||
| Engine model | NEF45TM2A.S500 | |||
| Prime power/ standby power kw | 88/96 | |||
| Number cylinders | 4 | |||
| Fuel System | ||||
| Fuel consumption at | ||||
| Stand-By gr/kWh (l/h) [kg/h] | 24.0 (206.7) | |||
| 100% load l/h (g/kWh) | 22.0 (207.7) | |||
| Exhaust System | ||||
| Gas flow at stand by power kg/h | 538 | |||
| Max temperature at PRP (25°C) | 540 | |||
| Max allowable back pressure kPa (mbar) | 5 (50) | |||
| Energy to exhaust kcal/kWh | 590 | |||
